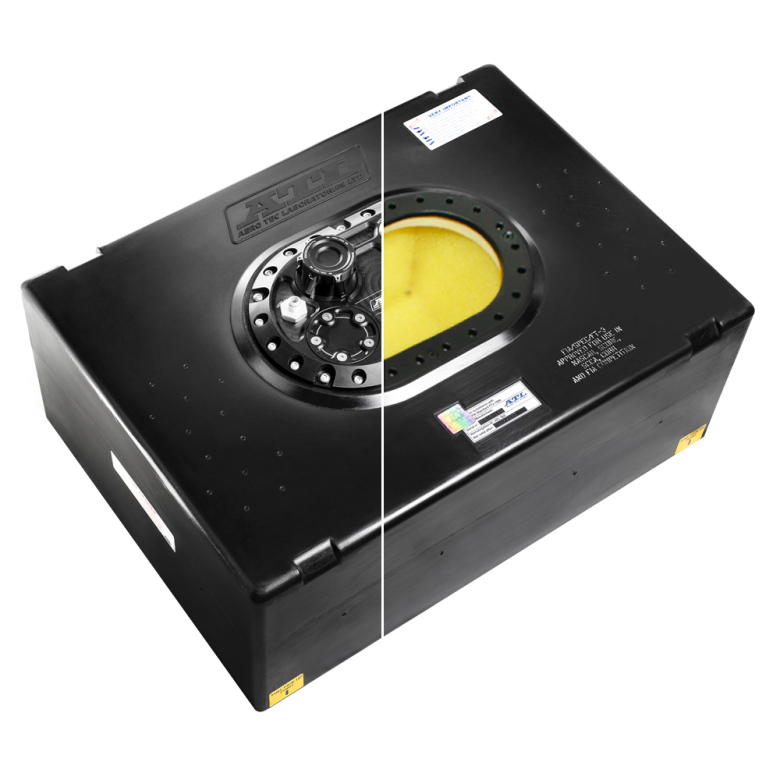

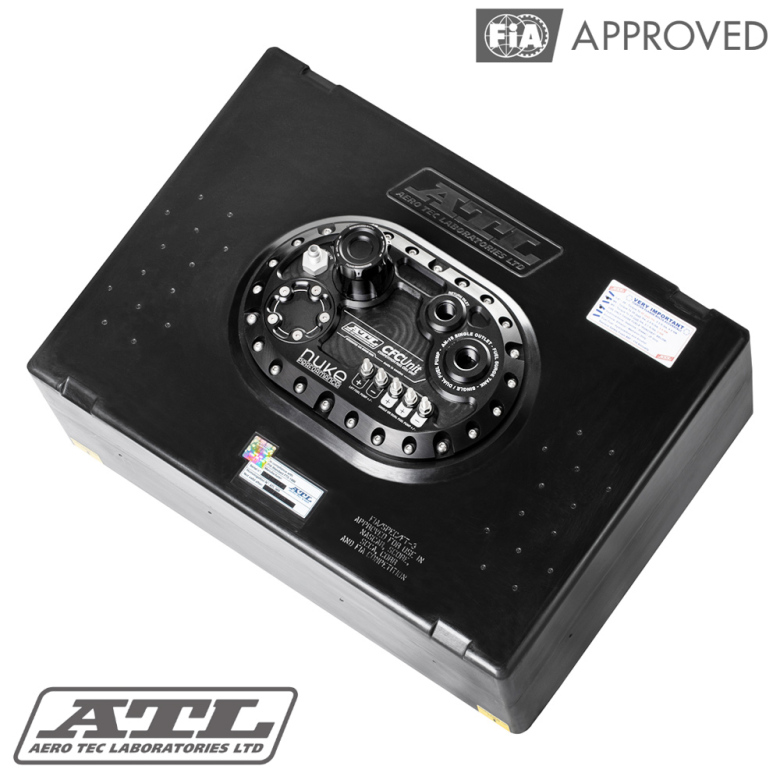

ATL Saver Cell fuel cell with the Nuke Performance CFC Unit 60L

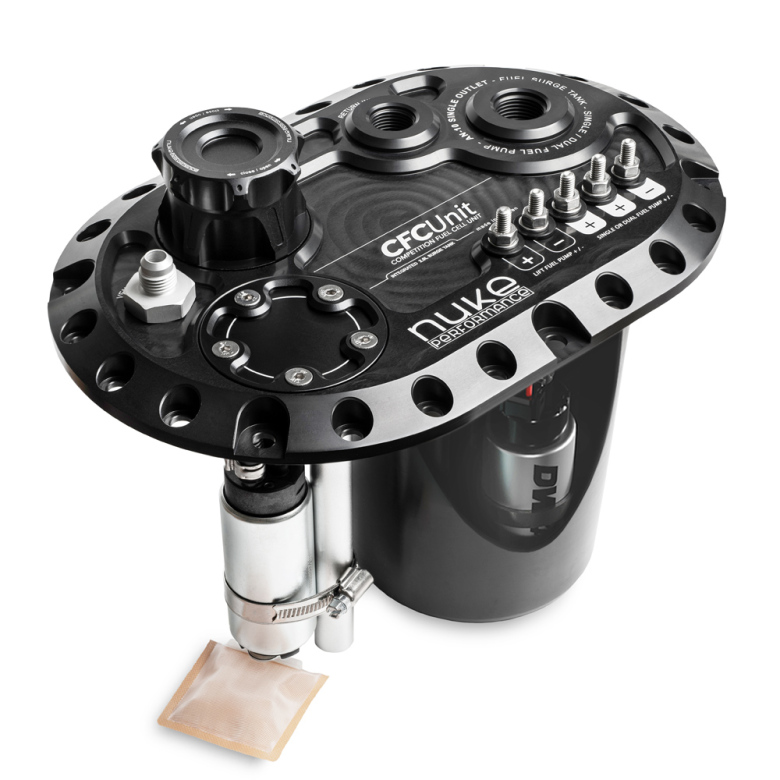

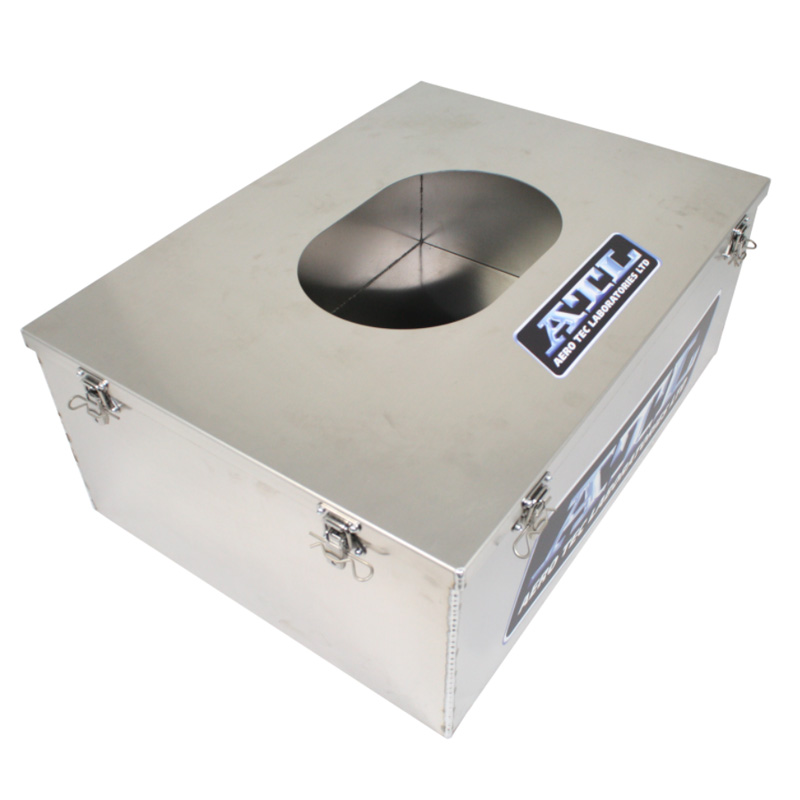

FIA FT3-1999 approved fuel cell Available in several sizes, for all needs Integrated 2 liter Fuel Surge Tank function Full foam baffling for petrol and E85 Fits single or dual high-pressure fuel pumps New high-profile CFC Unit that fits all ATL fuel cells Low-profile fuel filler cap with integrated roll-over valve AN-10 ORB outlet / AN-8 ORB return The ATL Saver Cells are suitable for use with carburetor-based fuel systems and with the integrated high-profile CFC Unit from Nuke Performance, which eliminates the need for an external surge tank which is other needed when running a fuel cell, it is a perfect use for fuel injected systems. Our selection of saver cells comes with yellow foam for petrol and E85. Technical information : • Optional aluminium light weight container. • Delivered without top plate, ready for the CFC Unit. • 24 bolt pattern 6x10" fill plate fitment. • Delivered with the Nuke Performance CFC Unit. • FIA / FT3-1999 approved. • Safe for E85, but need to be drained when stored. • Modifications need to be performed prior to CFC Unit installation. • No fuel pumps is included. Inluded in the package : 1 x Nuke Performance CFC Unit 1 x ATL Saver Cell FIA certification : FIA certified fuel cells have a 5 year life, and can be recertified for a further 2 years up to a maximum of 7 years from the date of manufacture. Fuel Cells must be sent back to ATL for recertification to take place. To comply with FIA regulations, Saver Cells must be installed within an aluminium container, please take into account the dimensions of the container and not the saver cell when checking chassis fitment. It is not recommended for customers to build their own aluminium containers without consulting ATL as any sizing issues may invalidate warranty. Modification of tank prior to installation : With the new high-profile version of the Nuke Performance CFC Unit, no modifications of the fuel cell is needed prior to installation. If you have one of the low-profile versions of the CFC Unit and want to install this into your own ATL fuel cell, contact us and we will provide you with instructions of the needed modifications. 60 liter fuel cell : Fuel cell : Length : 602 mm / Width : 437 mm / Height : 234 mm Container : Length : 633 mm / Width : 461 mm / Height : 250 mm Fuel Pumps : Please notice that no fuel pumps are included with this kit of Cell and CFC Unit. You can choose from a selection of fuel pumps when placing order. Visit each fuel pump for more information about flow and estimate horsepower. If you have more questions about choosing fuel pumps for your setup, contact us prior to placing order. Suggested single lift pump: 1 x Ti Automotive / Walbro GST450 1 x Ti Automotive / Walbro GST520 1 x Deatschwerks DW300 1 x Deatschwerks DW400 Suggested single or dual high pressure pump: (within the surge tank) 1-2 x Ti Automotive / Walbro GST450 1-2 x Ti Automotive / Walbro GST520 1-2 x Deatschwerks DW300 1-2 x Deatschwerks DW400
