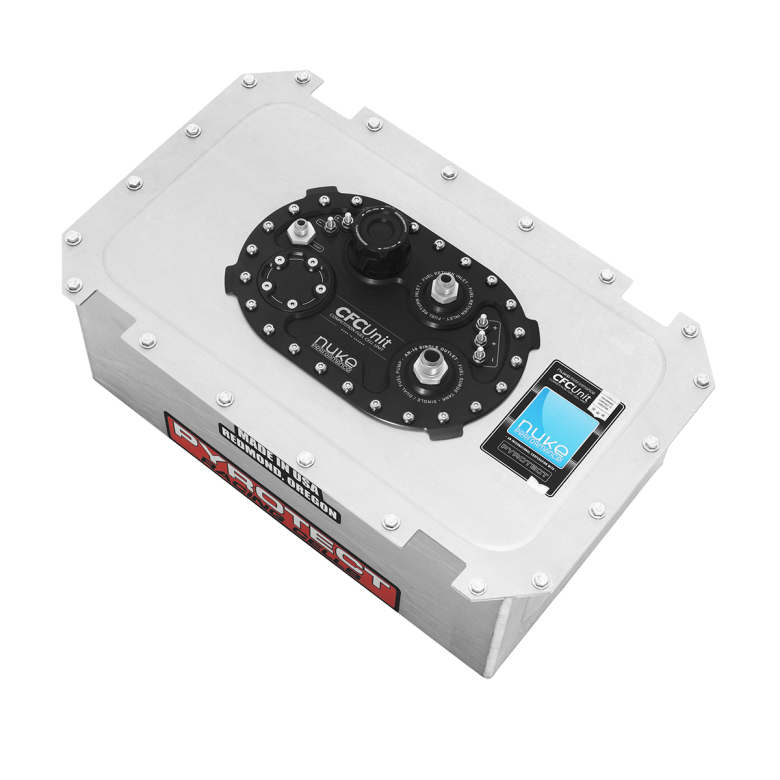

Pyrotect Elite Fuel Cell with the Nuke Performance CFC Unit 30L

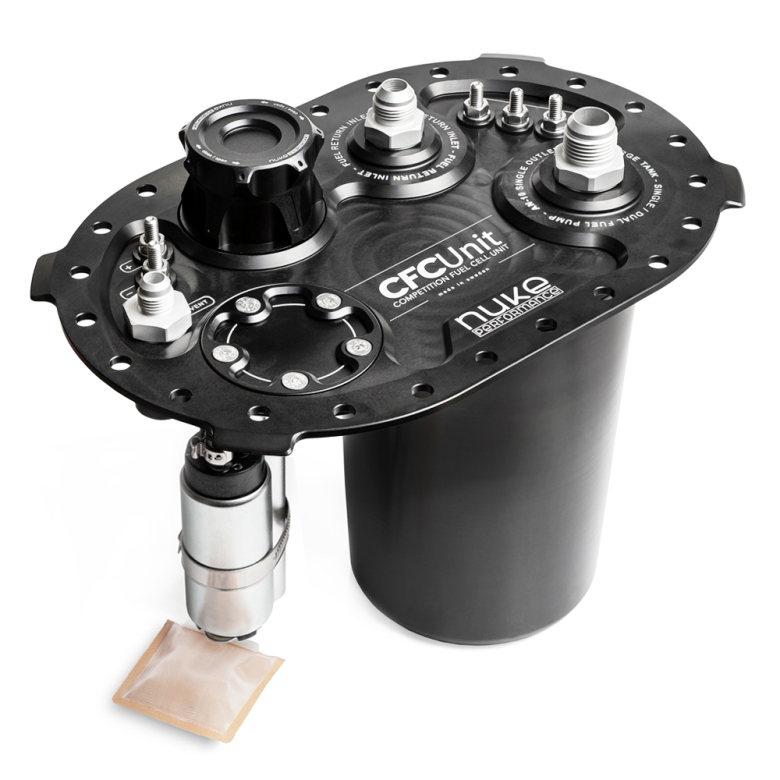

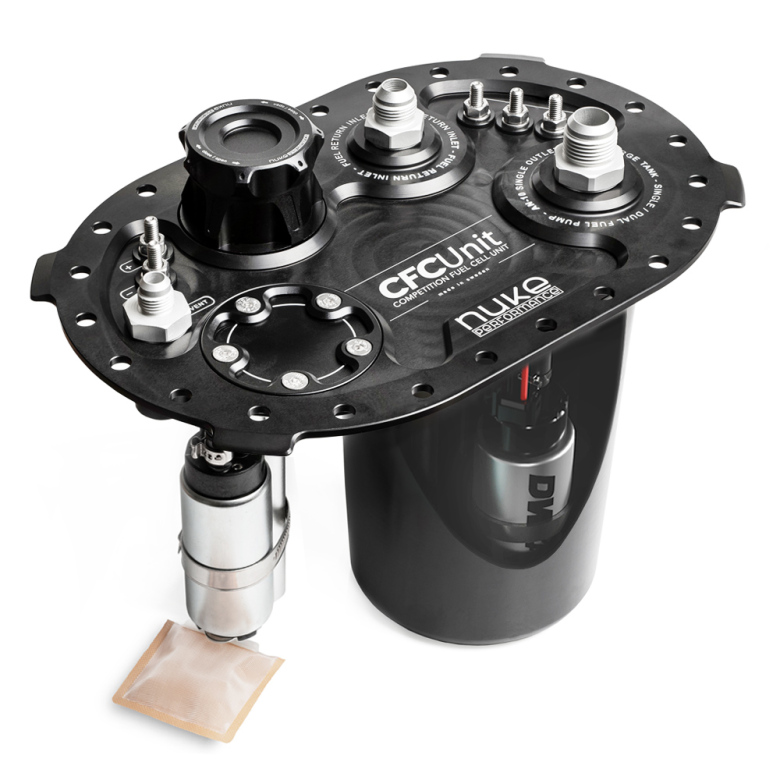

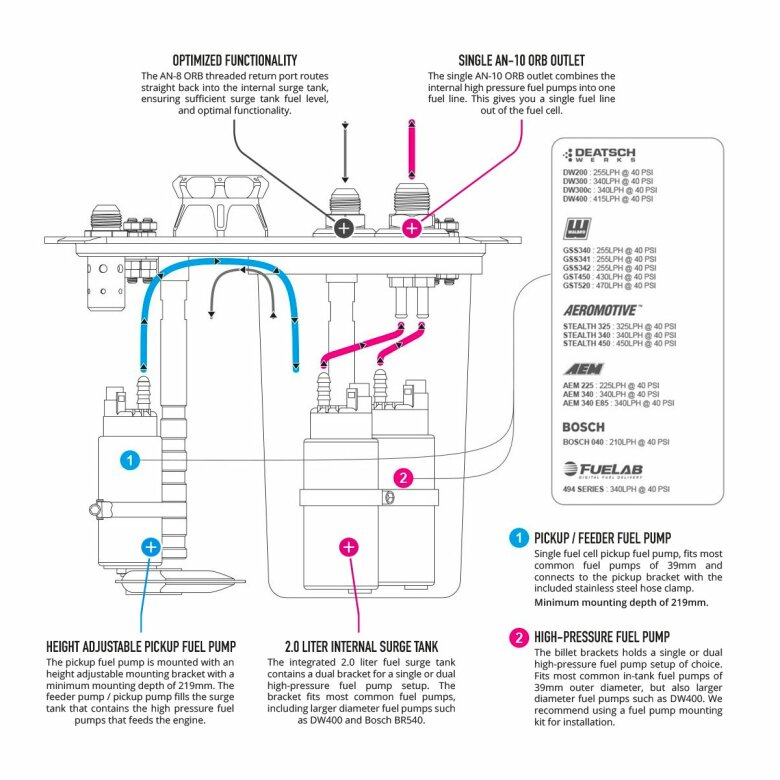

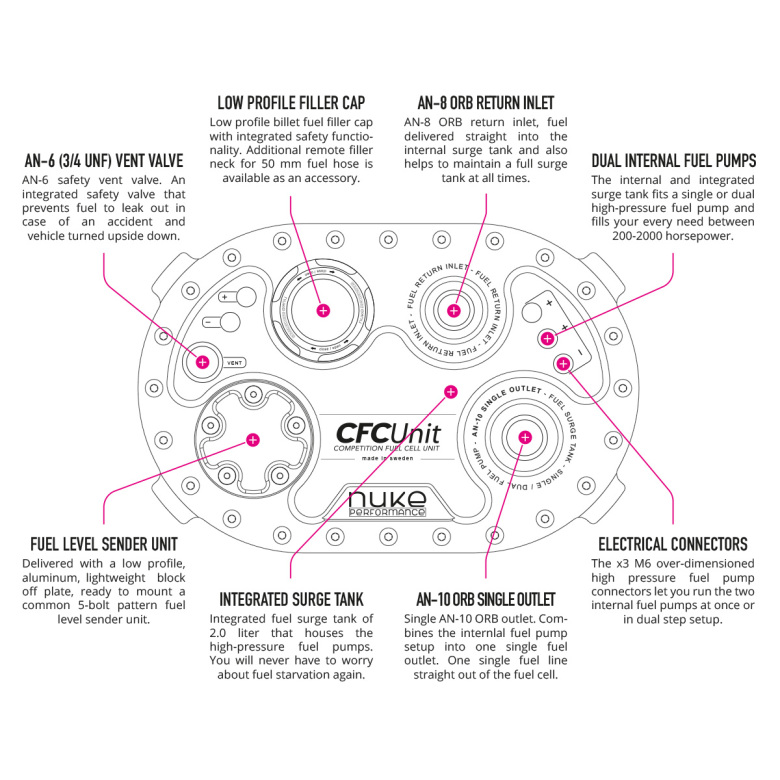

Extremely lightweight fuel cell FIA Approved for all types of motorsports Safe for all types of fuel, including alcoholic fuels Urethane fabric bladder, for motorsports use Available in several sizes, for your every need Integrated 2 liter Fuel Surge Tank function Fits single or dual high-pressure fuel pumps AN-10 ORB single outlet / AN-8 ORB return The high-quality PyroCell Elite fuel cells from Pyrotect is the top of the line fuel cells made out of ultra-durable double-coated urethane fabric with internal foam baffling and with the integrated CFC Unit from Nuke Performance, which eliminates the need for an external surge tank which is needed when running a traditional fuel cell setup, it is a perfect use for fuel injected systems. The fuel cell is safe for all types of fuels, including ethanol, and methanol. FIA certification : FIA certified fuel cells have a 5 year life, and can be recertified for a further 2 years up to a maximum of 7 years from the date of manufacture. Fuel Cells must be sent back to Pyrotect for recertification to take place. To comply with FIA regulations, the fuel cell bladder must be installed within the included aluminum container. The dimensions listed on our website is with the included container. Custom designed Pyrotect fuel cells : For custom designed Pyrotect fuel cells, contact us directly for a quote for a custom made fuel cell with an integrated Nuke Performance CFC Unit. Measurements : The bolt flange around the top lid is additional 25.4mm (1,00") per side, add this to listed measurements. Custom "shoebox" design is optional, contact us for custom order. 8 gallon (30.28 liter) fuel cell : Length : 527 mm / Height : 219 mm / Width : 308 mm Length : 20.75" / Height : 8.62" / Width : 12.12" CFC Unit Part # 150-05-201 Minimum mounting depth 219mm (8.62") Mounting bolt pattern 6x10" 24-bolt pattern High-pressure fuel pump connector x 3 (max 125 ampere / each *) - Connector points 6 mm bolt connectors Pickup fuel pump connector x 2 (max 125 ampere / each *) - Connector points 6 mm bolt connectors Length 295mm (13.74") Width 194mm (9.88") Weight 1934g (68.21oz) Maximum pickup pipe length 90mm (3.54") / 95mm (3.74") Fits number of lift fuel pumps 1 x brushed fuel pump Fits number of high-pressure pumps 1-2 x brushed fuel pump Fuel compatibility Gasoline, Methanol, Ethanol, E85 Fits additional venturi lift kit NO Internal surge tank volume Approximately 2.0 liter (0.53 gallons) 1 x Pyrotect Elite fuel cell with aluminum container 1 x Nuke Performance CFC Unit - low profile version 2 x 1/4" BSPP to Male barb 8mm hose fittings 1 x 1/4" BSPP plug, when using only one high-pressure fuel pump 2 x 39mm inserts for high-pressure fuel pump bracket 1 x Viton gasket for 24 bolt pattern fuel cells (safe for alcoholic fuels) 1 x Low profile filler cap (remote fill neck available as accessory) 1 x Dual billet fuel pump bracket and adjustable pickup pump mount 1 x AN-8 (3/4 UNF) to AN-6 Male vent safety valve 1 x FLS spacer, used for fuel level senders with a not symmetrical bolt pattern 24 x 1/4-28 UNF x 1 bolts with nylon washers
